Overview

Basic Info.

Model NO.	BTX
Pixel Pitch	1.58/1.8605/2/2.5mm
Pixel Configuration	1R,1G,1B
System Operating Platform	Windows
Display Type	LED Video Display
Application	Stage Performance, Advertising, Shopping Guide
IP Rating	IP43
Certification	CE, RoHS, CCC, ETL
Module Size (mm)	320×160
Horizontal Viewing Angle (Deg)	≥150°
Vertical Viewing Angle (Deg)	≥130°
Display Brightness (Nits)	≥450
Refresh Rate (Hz)	3840
Operating Temperature Range (°c)	-10°c - 40°c
Specification	Customized
Origin	China
HS Code	85312000

Product Description

Main features:

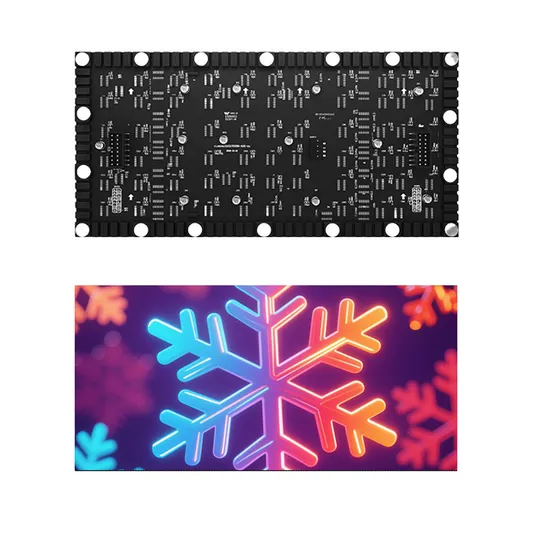

Standardized size: 320x160mm; The PCB board is made of flexible soft board, and the bottom shell is made of high-quality silicone material; The bending angle of the module is between 120 ° and 180 °, and violent repeated bending of the module is prohibited; The module adopts a high refresh rate and high grayscale IC dual tube design, which ensures more uniform heat dissipation and a refresh rate of over 3840Hz; With a viewing angle of up to 160 °, the soft module series is suitable for artistic shapes such as cylindrical screens, spiral screens, wave screens, and ribbon screens, and is widely used in planning Museums, science and technology museums, urban planning museums, art museums, creative centers, etc; The 5V power cord of the module adopts pure copper national standard power cord The module adopts 18 strong magnetic adsorption installation, which can be micro adjusted and has good screen flatness.

Introduction to highlights of software modules:

Precautions for use:
When installing and disassembling modules, it is strictly prohibited to violently tear the modules to avoid excessive force that may break the copper pillars and damage the PCB board; The bending angle of the soft module is between 120 ° and 180 °, and violent repeated folding of the module is strictly prohibited; It is recommended to use galvanized square pipes for installation, as galvanized square pipes cannot guarantee flatness, It is recommended to use sheet metal sandblasted iron boxes that are easy to install and have good flatness for installation; The module with magnetic plates is directly attached to the steel frame and can be used indoors. It supports installation methods such as fixing, lifting, and wall mounting, meeting various indoor safety requirements The usage requirements for installation environment (embedded installation, hanging installation, wall mounted installation, roof mounted installation, column mounted installation).

Product Introduction:
Traditional LED display modules are made from rigid PCB boards and bottom cases and inherently lack any flexibility. As a result, they are not applicable in arc - shaped or curved areas. If traditional LED display modules are to be used in such areas, special manufacturing processes are needed, which will significantly increase costs, and the overall aesthetic is not very satisfactory.
The emergence of flexible LED modules has perfectly addressed the above - mentioned issues. These products are made of flexible materials, boasting high softness and bendability. Whether the LED display is designed in an arc, cylindrical, wavy or other shapes, they can achieve the best overall display effect.

Product Parameters Our Advantages Product Description Application Scenarios Company Profile Collaboration Case Certifications FAQ Q. who are we? A:We are based in Jiangsu, China, start from 2005,sell to Domestic Market(30.00%),North America(20.00%),Southeast Asia(20.00%),Northern Europe(10.00%),Eastern Europe(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Southern Europe(5.00%). There are total about null people in our office. Q: How to get the accurate quotation of LED products? A: Please inform us of the budget for the LED screen, the application scenario of the LED screen, and the specific area or length and width dimensions. It would be better if there is a CAD design drawing. We will configure a specific plan for the LED screen according to your requirements. Q: How long will it take to get the quotation list? A: Hello. Generally, we will reply to you immediately after receiving your inquiry information. If you are in a hurry, it is recommended to consult via TM or contact us by email. We will respond immediately after receiving the message. Q: How to choose the dot pitch of the product? A: It depends on your actual requirements, such as the resolution of the large LED screen, the application scenario, the distance for viewing the large LED screen, etc. You can tell us your requirements and we will calculate accurately for you.

Q: What's the general lead - time? A: For most of the products we represent, shipment can be arranged within 15 days. For a few customized products, shipment will be arranged within about 30 - 45 working days. It depends on the number of orders specifically.

Q: What's the product warranty period? A: The warranty period is one year. If you need to extend the warranty service, you can inform us before placing an order.

Q: Installation issues: A: Generally, the installation of LED screen products requires structure construction → laying cables and power distribution work → installing LED cabinets or modules → overall power - on, lighting and debugging of the product → completion. We can provide you with free remote guidance.

Q: Is there a sample service? A: Since they are branded products, we do not provide sample services for the time being. If you have an actual need for samples,it is recommended that you purchase a product of a basic unit.
